MHE Reverse Sensor System (30 Meter)

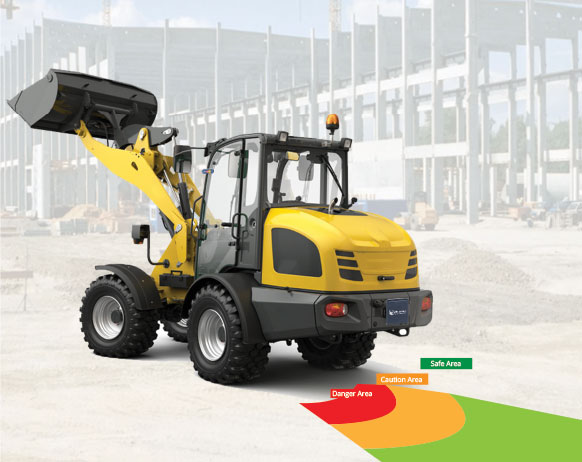

MHE Reverse Sensor System (30 Meter) uses an advanced 24GHz FMCW radar sensor mounted on the rear of the vehicle. The radar continuously scans the surrounding area, identifying objects and pedestrians in the detection zone, and alerts UK operators with instant visual and audible warnings when a person or obstacle enters the danger area.

MHE Reverse Sensor System (30 Meter) | Video

Watch this video to see how the 30-Metre MHE Reverse Sensor System detects moving and stationary objects, improving safety across UK industrial and construction traffic zones.

Radar Object Detection System (RODS-L) video thumbnail

Extend Safety Coverage Around Heavy Equipment

Improve forklift reversing control across UK construction sites, industrial yards and logistics facilities with a 30-metre detection system. Early proximity alerts help operators react sooner, reduce collision risks and protect workers, vehicles and site infrastructure.

Technical Specifications

Display Unit

Detection Zone

5 Zones

Operating Temp.

-30°C ~ +70°C

Cable Length

0.7 M

Other Features

Connector

4P Screw Lock type

Housing Material

Polycarbonate

Dimension

110(H) x 108(L) x 34(D) mm

Weight

220g with Bracket

Sensor Spec

Transmit frequency

24.05 ~ 24.25 GHz

Modulation

FMCW (Frequency Modulated Continuous Wave)

Supply voltage

12 ~ 32V DC

Current consumption

300 mA@12V

Power on time

300ms

Detection time

200ms

Operating temperature

-40°C~ 85°C

IP protection rate

69K

Dimension

110(H) x 108(L) x 34(D) mm

Weight

390 g (W/O Bracket) 720 g (With Bracket)

Key benefits of MHE Reverse Sensor System (30 Meter)

Smarter Detection For Safer Movement

Safety With Zero Compromises
 Programmable Radar Sensor icon

Programmable Radar Sensor

Offers three configurable detection modes for accurate, adaptable object sensing across UK warehouses, construction sites and industrial yards.

Compact 24 GHz Radar Sensor icon

Compact 24 GHz Radar Sensor

Compact yet powerful, delivering dependable long-range detection up to 30 metres across ports, logistics hubs and manufacturing plants.

FMCW Radar Modulation icon

FMCW Radar Modulation

Provides stable, high-precision detection across changing environments, reducing false alerts throughout distribution centres, factories and busy loading areas.

Waterproof and Rugged Design icon

Waterproof and Rugged Design

Built for reliable operation in harsh weather, dusty construction zones and extreme temperatures across Aberdeen, Grangemouth and Teesside.

Related products

What our Clients say

Trusted By Leading Industries For Safety, Clarity, And Dependability

Since we started using the MHE Reverse Sensor System (30 Meter), our warehouse is much safer. The system alerts our drivers to hidden objects and people in blind spots, preventing accidents. It’s easy to set up and use, and we’ve seen a noticeable drop in safety incidents.

Kuwait Drilling Testimonial
Kuwait Drilling Co. K.S.C.C. Warehouse Manager

The MHE Reverse Sensor System (30 Meter) has improved our distribution center’s safety significantly. Drivers can now easily avoid obstacles and prevent collisions in high-traffic areas. The system is user-friendly, and we’ve seen fewer accidents and smoother operations since we started using it.

camden boss Testimonial icon
Camden Boss Ltd Operations Manager

Thanks to the MHE Reverse Sensor System (30 Meter), our logistics team feels much safer. The system helps detect hazards around forklifts, preventing accidents. It’s easy to install and use, and we’ve had fewer close calls since implementing it.

tp electric testimonial icon
TP Electrical Supplies & Fixings LTD Warehouse Safety Manager

The MHE Reverse Sensor System (30 Meter) has greatly improved safety in our factory. The system helps our forklift drivers spot obstacles and avoid accidents in tight spaces. It’s reliable, easy to install, and has made a big difference in preventing accidents.

Solatherm Gulf FZE testimonial icon
Solatherm Gulf FZE Logistics Head

Contact us to optimize your industrial safety today!

Fancy Arrow

Let’s build a safer worksite together

Get Your Custom Safety Solutions

Map SVG Image

FAQs—MHE Reverse Sensor System (30 Meter)

Find Quick Answers To Common Product Questions

Why are businesses across the UK investing in MHE Reverse Sensor Systems with a 30-Metre Detection Range?

Large material handling vehicles often operate in expansive warehouses, ports, manufacturing plants, and outdoor industrial sites where hazards can appear from a considerable distance. An MHE Reverse Sensor System (30 Meter) provides early obstacle detection, giving operators more time to react to pedestrians, vehicles, and equipment. Facilities in Birmingham, Manchester, and Liverpool are increasingly adopting long-range detection systems to enhance workplace safety.

Standard reversing aids may not provide sufficient warning in large operational environments. A 30-metre reverse sensor system helps detect potential hazards much earlier, allowing operators to take corrective action before a situation becomes dangerous. This is particularly useful in logistics hubs across Northampton, Daventry, and Milton Keynes where vehicle movement is constant.

 The system continuously monitors a large detection zone behind the vehicle and alerts operators when objects, vehicles, or pedestrians are detected. In busy industrial facilities across Yorkshire, the West Midlands, and Greater Manchester, this advanced warning capability helps reduce reversing incidents and improves operator awareness.

 A longer detection range provides earlier hazard identification, making it particularly valuable for larger MHE vehicles operating in open yards, ports, manufacturing sites, and distribution centres. Businesses in locations such as Southampton, Hull, and Teesside often require extended-range safety systems due to the scale of their operations.

 These systems are commonly used in ports, logistics centres, manufacturing facilities, container yards, steel plants, distribution hubs, waste management sites, and heavy industrial operations. Facilities in Liverpool, Immingham, Grangemouth, and Aberdeen frequently use long-range detection systems to improve vehicle safety.

 Yes. Large material handling equipment often has significant blind spots, especially when reversing. A long-range obstacle detection system helps operators identify hazards well in advance, reducing the risk of collisions with pedestrians, machinery, infrastructure, and other vehicles operating nearby.

 Yes. Many 30-metre reverse sensor solutions can be installed on existing forklifts, reach stackers, container handlers, terminal tractors, and other material handling equipment. This allows businesses in Sheffield, Leicester, and Bristol to upgrade safety without replacing valuable fleet assets.

Key factors include detection distance, sensor accuracy, coverage area, alert functionality, environmental durability, integration requirements, and compatibility with the vehicle type. Operators in major logistics and industrial regions such as Rugby, Wakefield, and Coventry often prioritise systems that perform reliably in demanding environments.

 As organisations place greater emphasis on workplace safety and collision prevention, advanced detection technologies are becoming more common. Ports, warehouses, and industrial facilities in Manchester, Birmingham, Southampton, and other key UK logistics locations are investing in long-range reverse sensing systems to reduce risks and improve operational efficiency.

Businesses seeking advanced obstacle detection solutions for material handling equipment can source MHE Reverse Sensor Systems from specialist industrial safety providers. Across the UK, SharpEagle supplies 30-metre reverse sensor systems for warehouses, ports, logistics centres, manufacturing facilities, container terminals, and heavy industrial operations, helping organisations improve reversing safety and minimise blind-spot risks.
